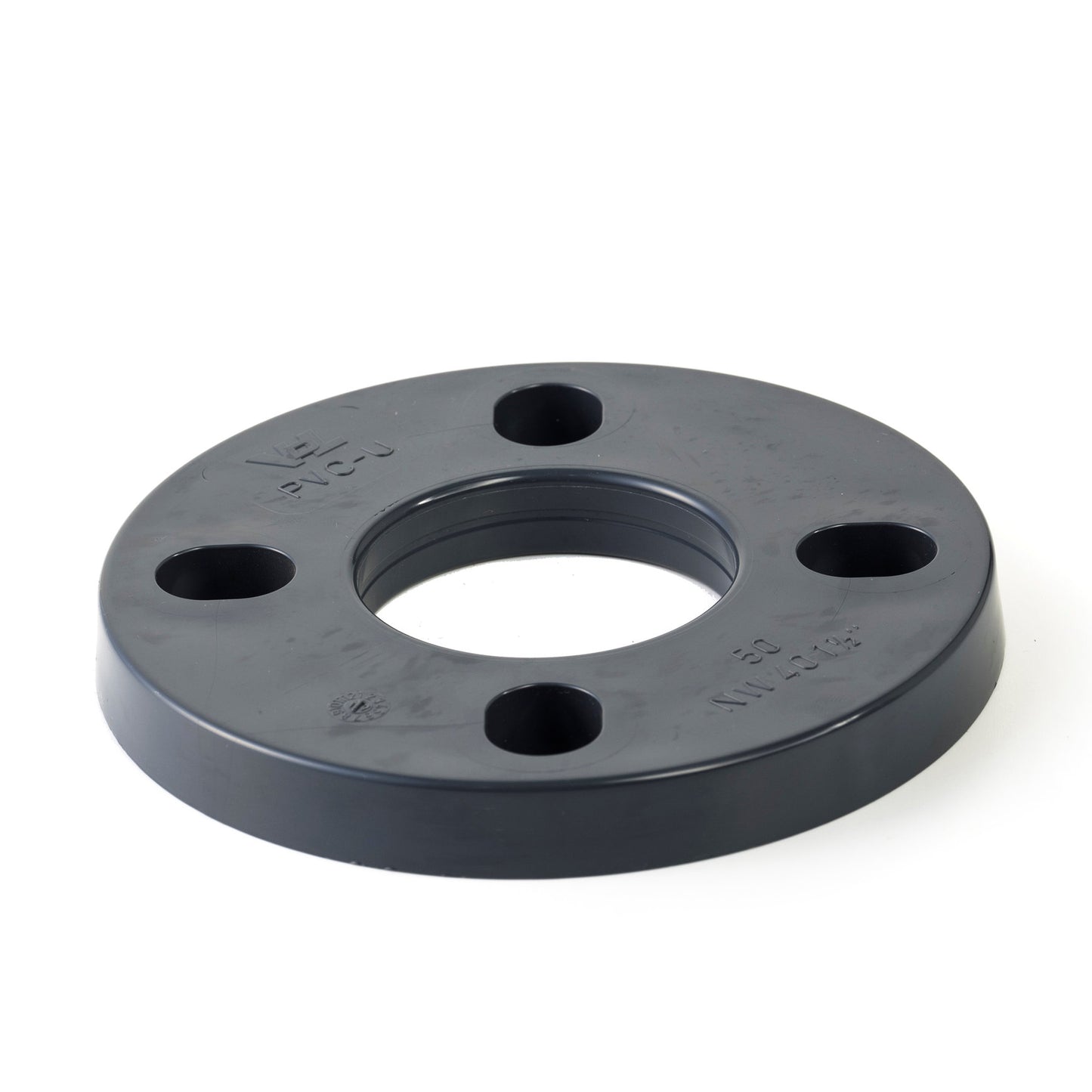

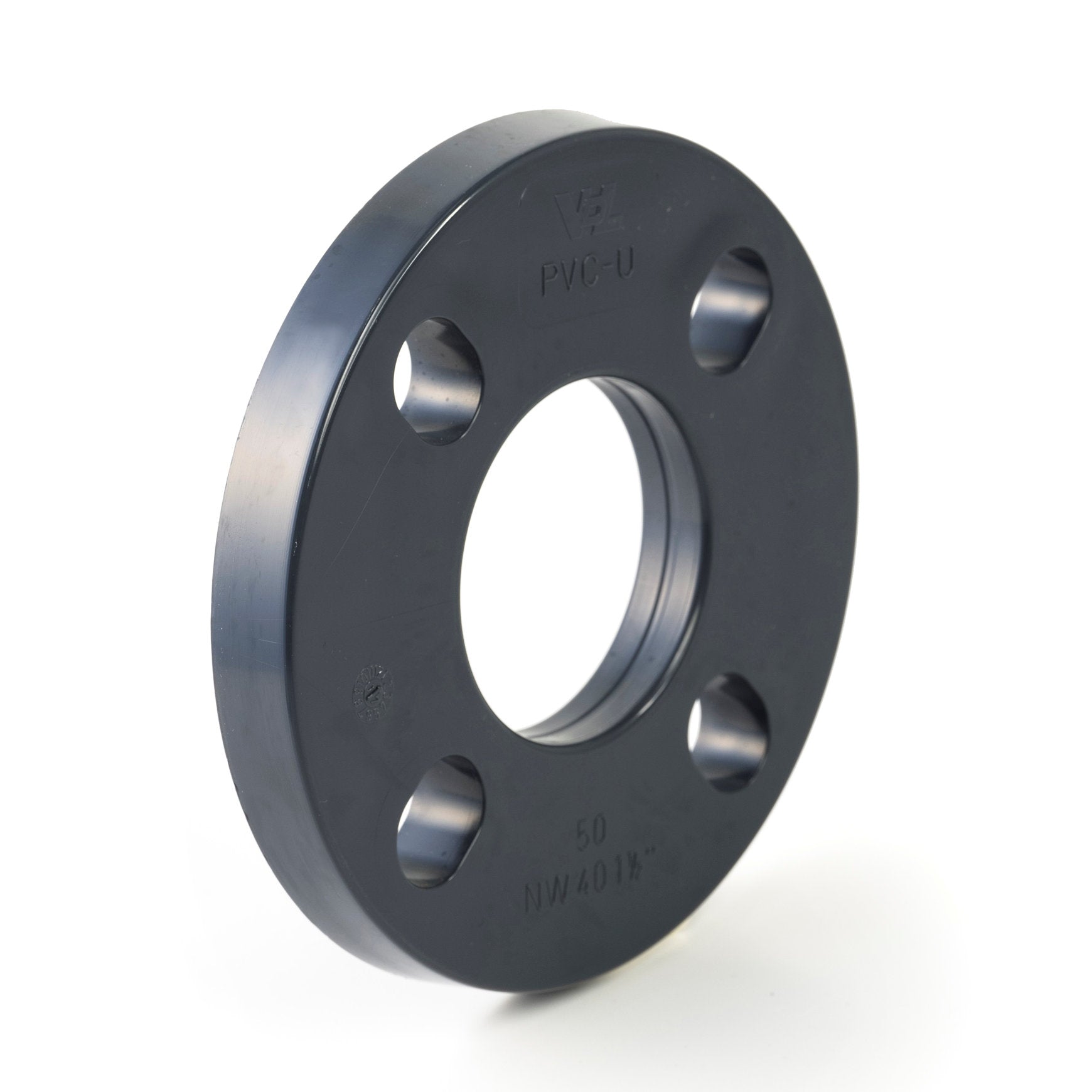

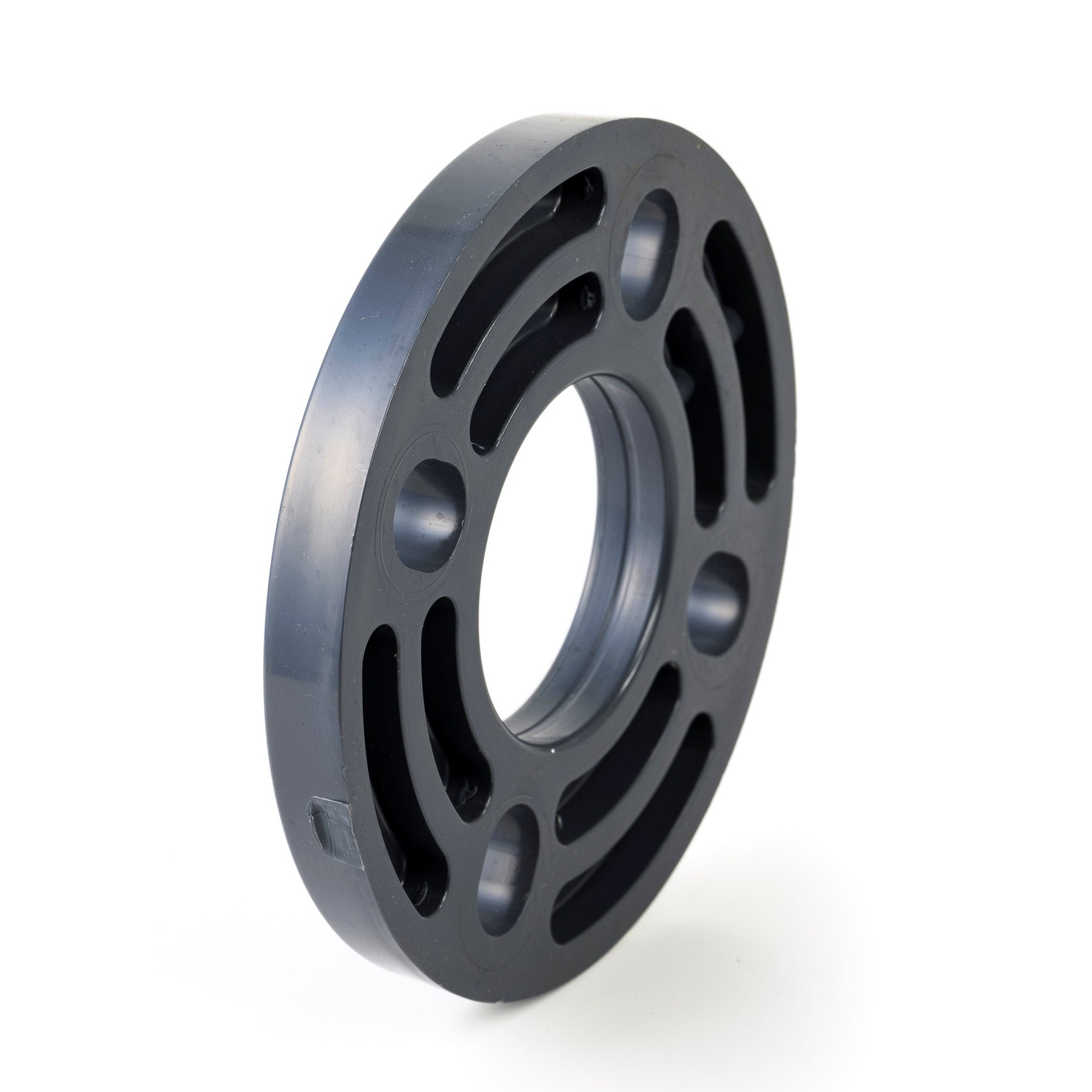

VDL slip-on flange, type B, PVC-U, 10 bar, 63 mm
VDL slip-on flange, type B, PVC-U, 10 bar, 63 mm
SKU:716235
Regular price
$14.13
Regular price
Sale price
$14.13
Unit price
per
In stock
Couldn't load pickup availability
Specifications
Assortments
wca2010104
Complementary products v2
ProductListDrop
Connection size
63 mm
Diameter
63 mm
Drill hole diameter
18 mm
Eancode
8717284022872
Inside size
78 mm
Material
pvc-u (polyvinyl chloride unplasticised)
Outer size
165 mm
Pitch circle diameter
120.5 mm, 124 mm
Pressure class
10 bar
Quality mark
NEN-EN-ISO 9001:2015
Type
B
Description
A PVC slip-on flange, in combination with a PVC collar bushing and sealing ring, creates a strong and removable connection to fittings, accessories or other pipes. The maximum working pressure of this slip-on flange is 10 bar, the diameter is 63 mm.
PVC-U is suitable for operating temperatures from 0°C to 60°C, whereby it is important to note that the maximum working pressure depends on the operating temperature. The specified pressure applies at a temperature of 20°C. PVC-U is strong, dimensionally stable, has good chemical resistance, and is maintenance-free.
