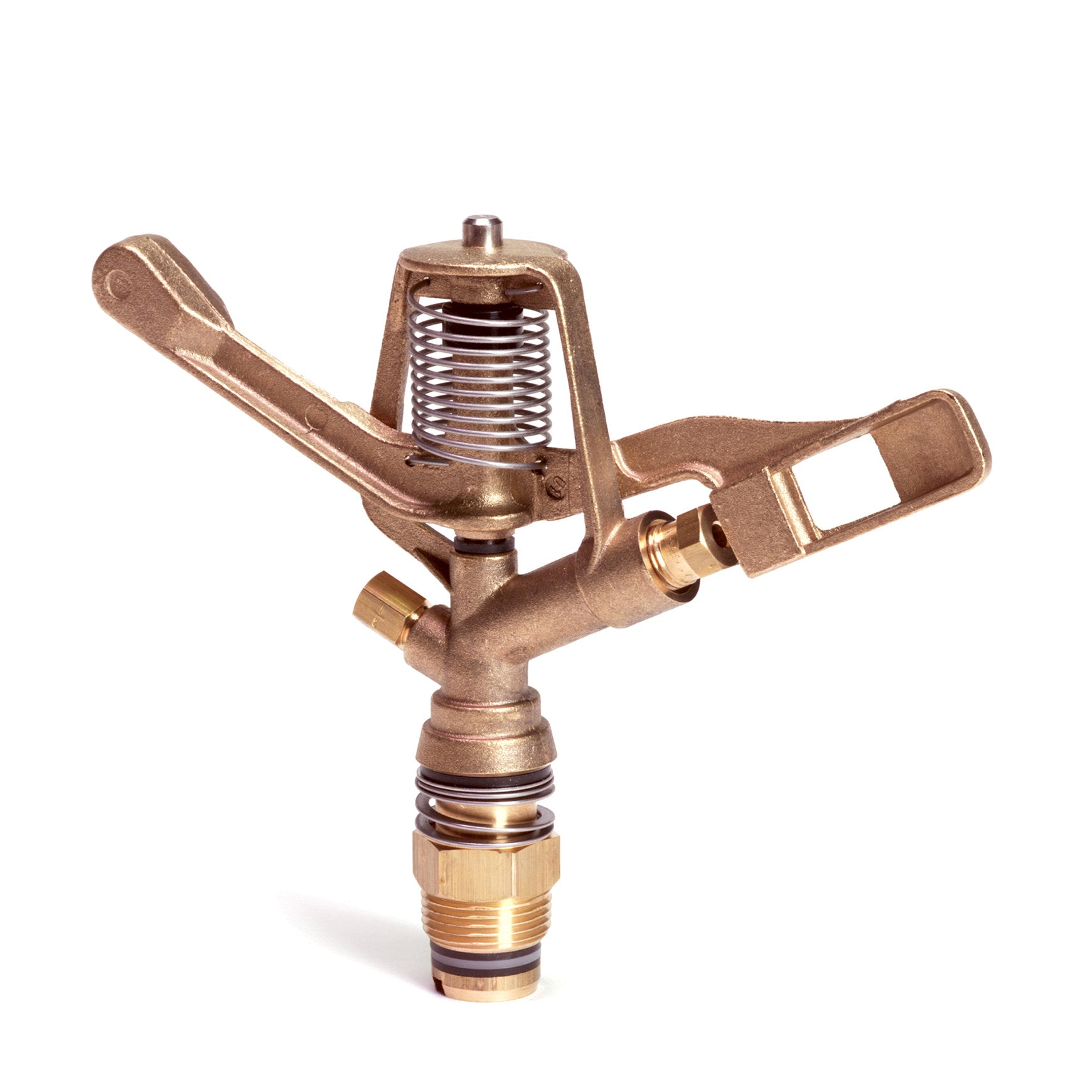

Vyr circular sprinkler, type 70, ¾" male thread, incl. 1 nozzle 4.8 mm and blind plug

Vyr circular sprinkler, type 70, ¾" male thread, incl. 1 nozzle 4.8 mm and blind plug

SKU:780139

$54.70
$54.70
Sale Sold out
In stock
View full details

Specifications

Assortments
wca5001110
Beam range
15,5 m
Complementary products v2
ProductListDrop
Connection size
¾"
Connection type
male thread
Eancode
8435542208607
Material
bronze/brass
Maximum capacity
2 m³/uur
Nozzles available
4 mm, 4,4 mm, 5,2 mm
Nozzle connections
2
Pressure range
2,5 bar
Spray surface
750 m²

Description

This VYR 70 full circular sprinkler is strong and durable, and made of copper and stainless steel. The sprinkler comes with a 4.8 mm nozzle as standard and blind plug.
Extra nozzles available with diameters of 4, 4.4, and 5.2 mm. Rear nozzles are available with diameters of: 2.4, 3.1, and 5.5 mm.
The sprinkler is specially designed for a wide range and is used for irrigation with medium to high water consumption.

Technical specifications

Spray radius: 13 - 18 m.
Capacity: 660-3270 l/h.
Working pressure: 1.75-4.5 bar.
Spray angle: 360°.

Specifications

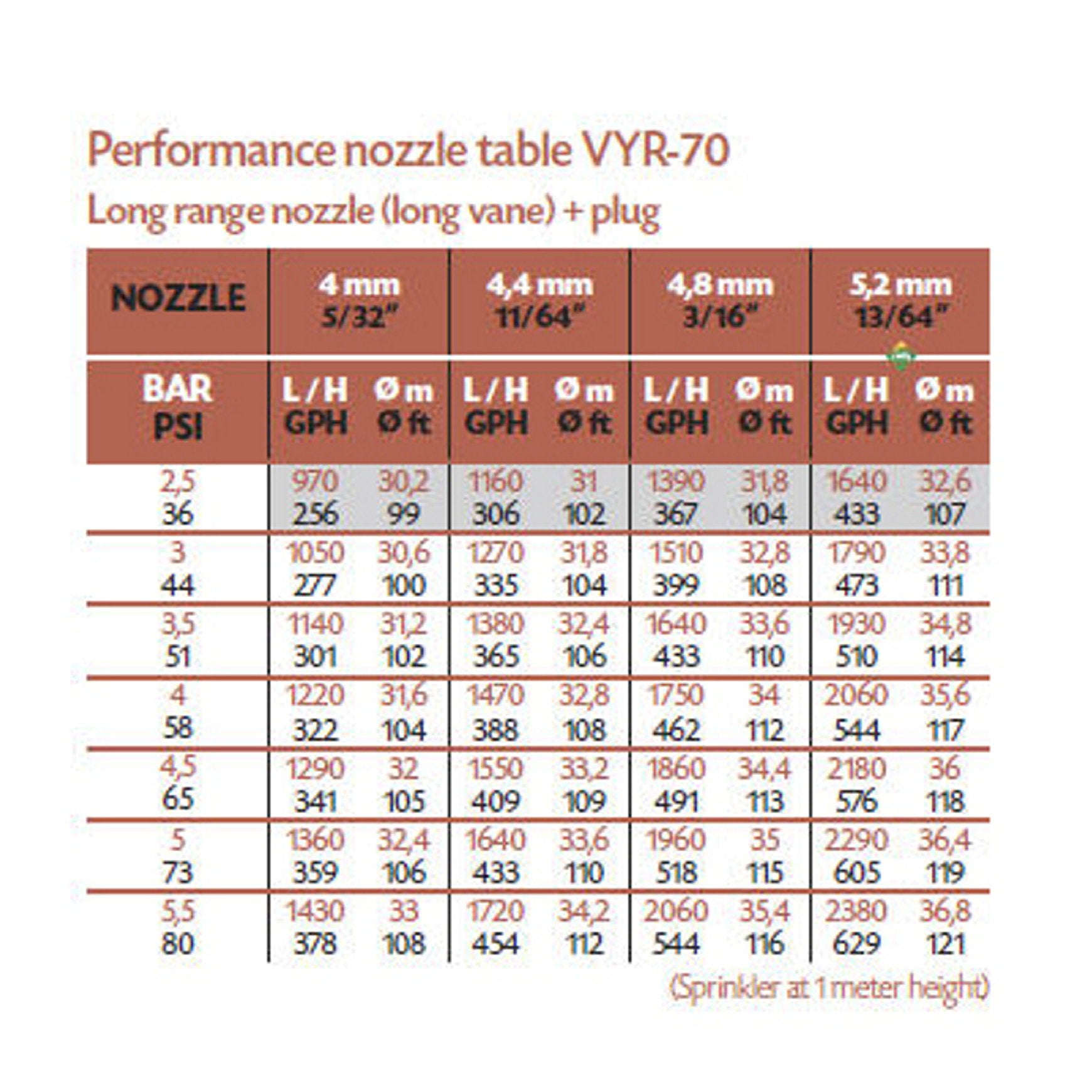

The specifications for the different capacities, spray area and spray radius are based on a water pressure of 2.5 bar.

Application

Horticulture.
Fruit trees.
Agriculture; grains and tubers.

Do you want to buy a VYR sprinkler or need more information?

The desired sprinkler can be ordered easily and quickly via our website or purchased at one of our branches. Are you not yet sure which sprinkler and nozzle would be best for your situation? Contact one of our irrigation specialists for advice without obligation.
