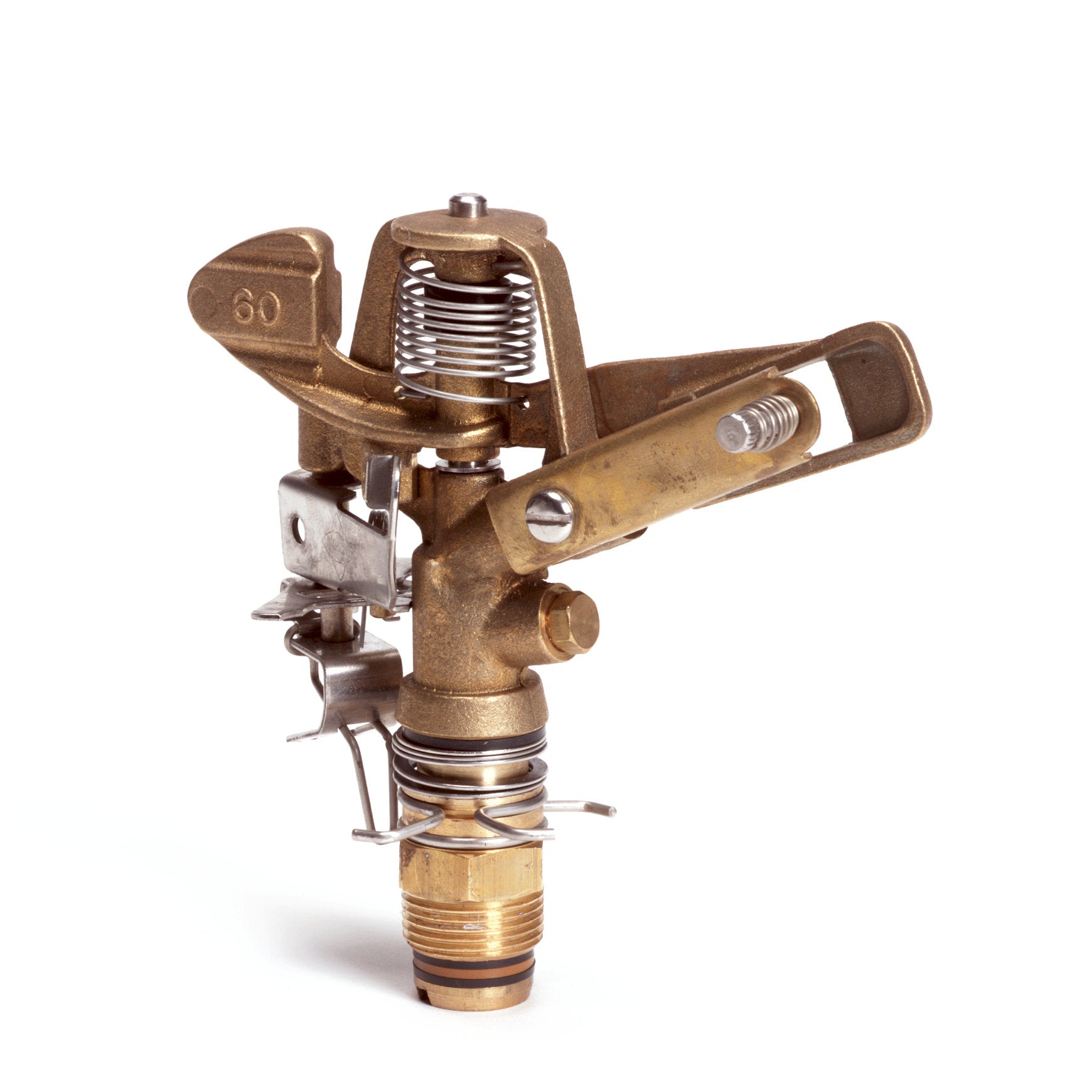

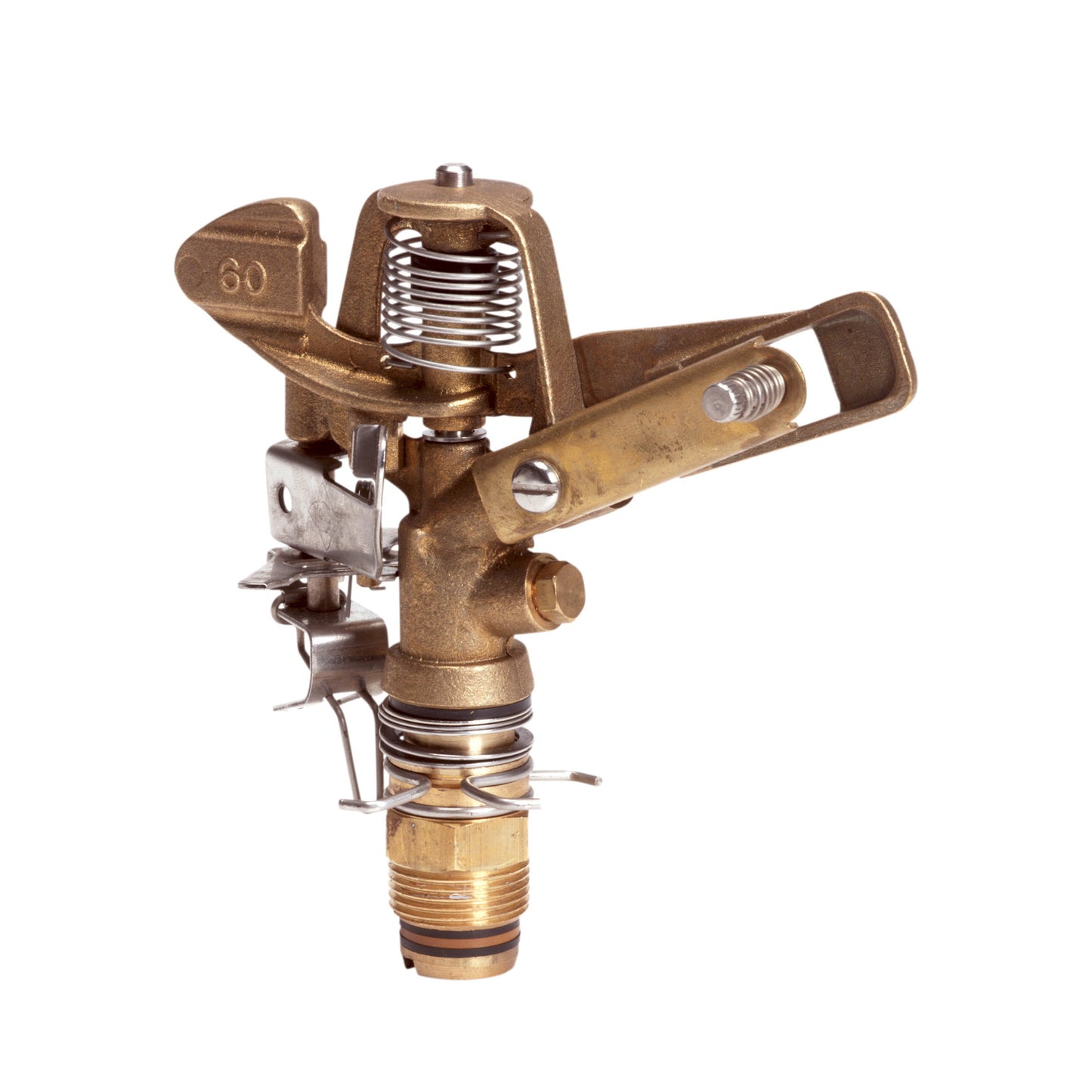

Vyr round- / sector sprinkler, type 60, ¾" male thread, incl. blind plug and 1 sprinkler 4.4 mm

Vyr round- / sector sprinkler, type 60, ¾" male thread, incl. blind plug and 1 sprinkler 4.4 mm

SKU:780149

$76.44
$76.44
Sale Sold out
In stock
View full details

Specifications

Assortments
wca5001110
Beam range
13,1 m
Complementary products v2
ProductListDrop
Connection size
¾"
Connection type
male thread
Eancode
8717108001380
Material
bronze/brass
Maximum capacity
1.16 m³/uur
Nozzles available
4 mm, 4,4 mm, 4,8 mm, 5,2 mm, 5,5 mm
Nozzle connections
1
Pressure range
2,5 bar
Spray surface
538 m²

Description

This VYR 60 full circular sprinkler is strong and durable, and made of copper and stainless steel. The sprinkler comes with a 4.4 mm nozzle as standard and blind plug.
Extra nozzles available with diameters of 4, 4.8, 5.2, and 5.5 mm.

Thanks to the quick-adjust clips, the sprinkler can easily be set to part-circle irrigation.
The sprinkler has average water consumption and easily reaches edges and corners.

Technical specifications

Variably adjustable at an angle.
With jet breaker.
Spray radius: 12 - 19 m.
Capacity: 800-3270 l/u
Working pressure: 1.75-5 bar.
Spray angle: 5 - 360°.

Specifications

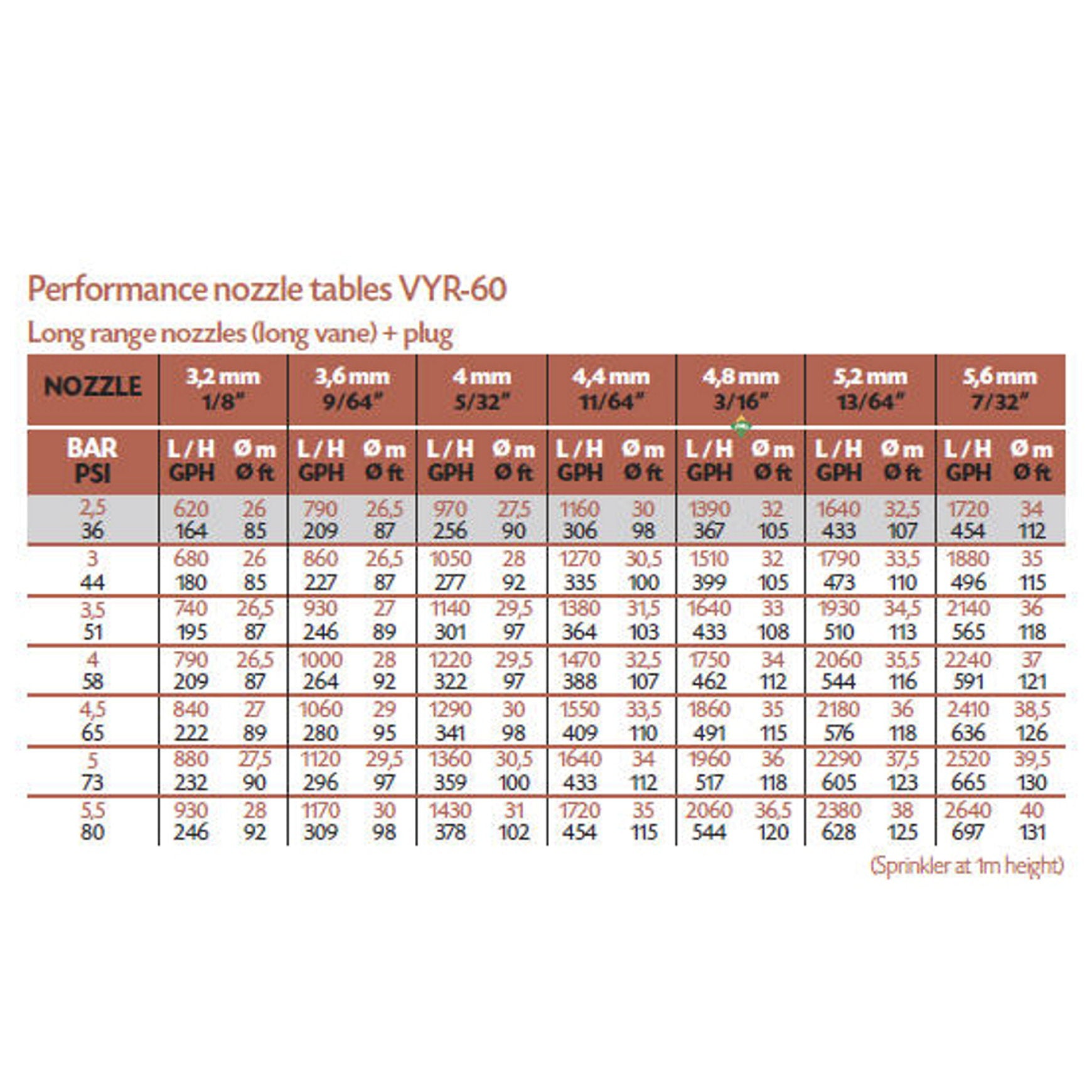

The specifications for the different capacities, spray area and spray radius are based on a water pressure of 2.5 bar.

Application

Horticulture, grains, tubers, legumes and fruit trees.

Do you want to buy a VYR sprinkler or need more information?

The desired sprinkler can be ordered easily and quickly via our website or purchased at one of our branches. Are you not yet sure which sprinkler and nozzle would be best for your situation? Contact one of our irrigation specialists for advice without obligation.
