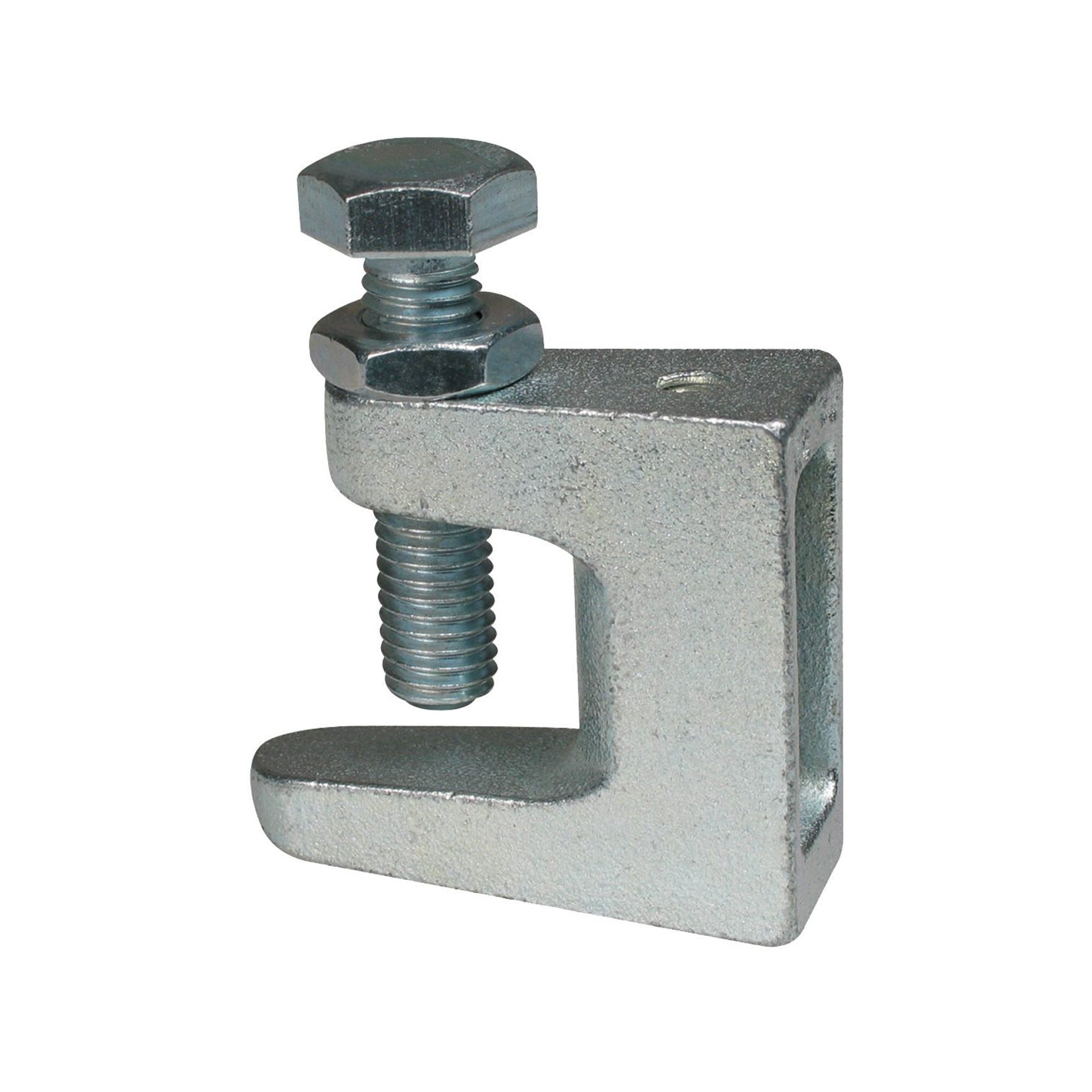

Walraven BIS beam clamp, model C, steel, vds, M8 x 23 mm
Walraven BIS beam clamp, model C, steel, vds, M8 x 23 mm
SKU:262083
Regular price
$8.35
Regular price
Sale price
$8.35
Unit price
per
In stock
Couldn't load pickup availability
Specifications
Adjusting bolt
M10
Carrying capacity
250 kg
Connection size
M10/M8
Diameter
M10/M8
Eancode
8712993007028
Flange thickness max
23 mm
Flange thickness max.
23 mm
Material
cast iron, electrolytically galvanized
Description
- For a solid attachment to steel structures without drilling or welding.
- According to VdS regulations, beam clamps for attaching sprinkler pipes larger than DN65 must be secured with a safety strip to prevent lateral slipping.
- Bolt with hexagonal head according to DIN 933 strength class 8.8, screw point with ring cut according to EN ISO 4753 and counter nut.
- Material: beam clamp made of cast iron; bolt made of hardened steel, nut made of steel; electroplated zinc.
