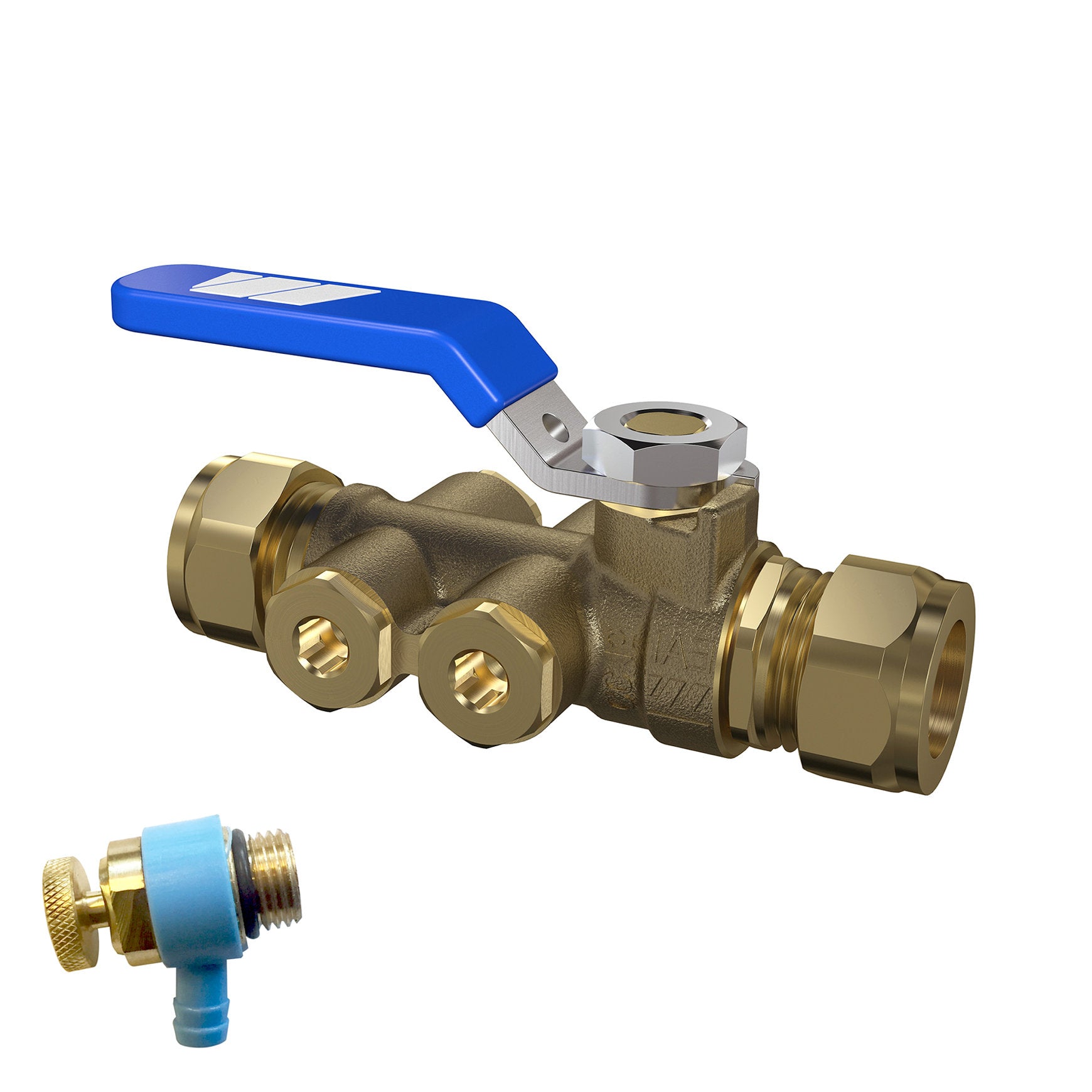

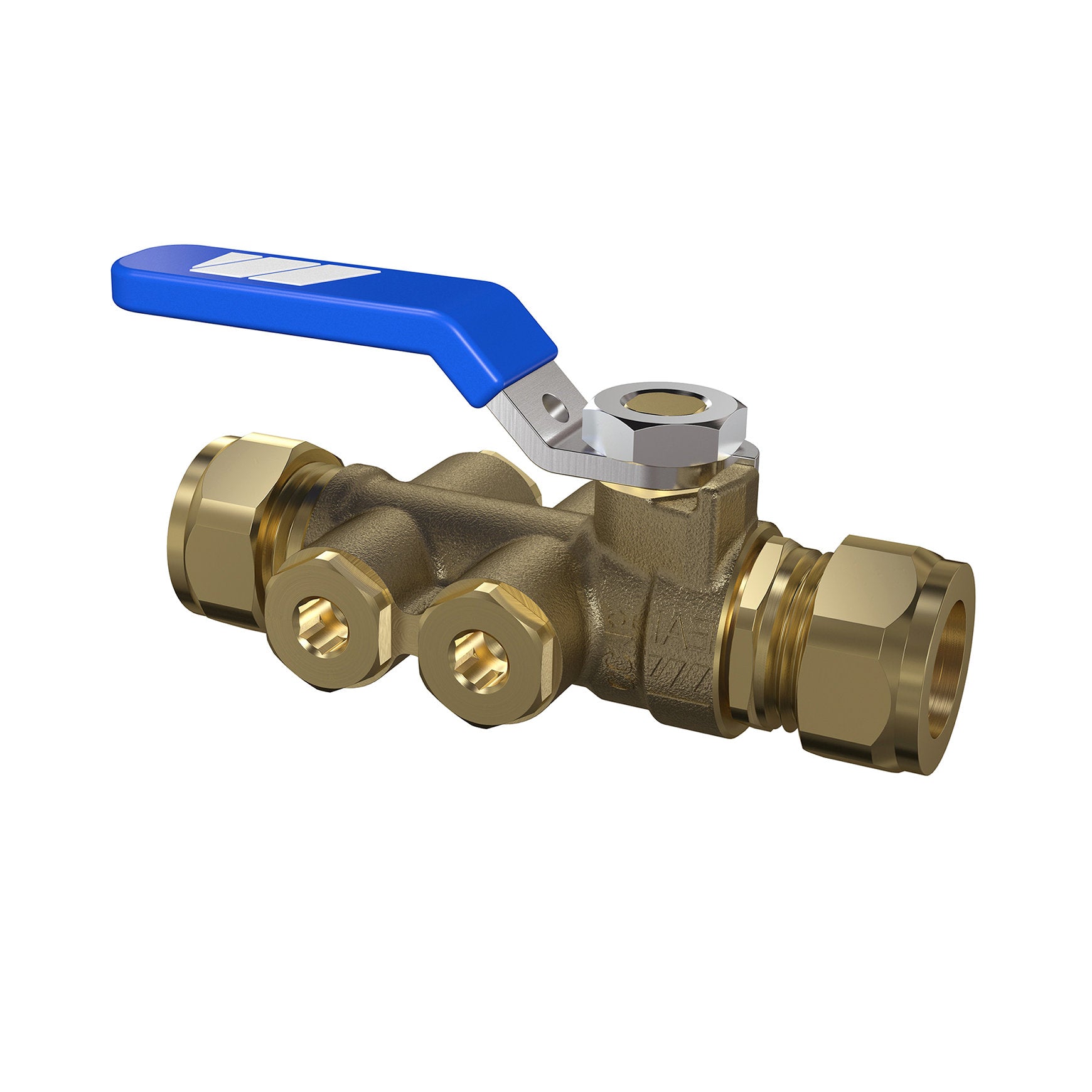

Watts check valve, brass, EA protection, drain valve, incl. ball valve and lever, compression, 15 mm
Watts check valve, brass, EA protection, drain valve, incl. ball valve and lever, compression, 15 mm
SKU:846828
Regular price
$38.22
Regular price
Sale price
$38.22
Unit price
per
In stock
Couldn't load pickup availability
Specifications
Assortments
wca20100555
Ball material
brass
Check valve material
POM
Complementary products v2
ProductListDrop
Connection size
15 mm
Connection type
compression
Control cams
¼"
Eancode
3660770746590
Housing material
brass
Length
92 mm
Lever
steel
Maximum working temperature
90 °C
Nominal diameter
15 mm
Operating temperature
65 °C
Oring
EPDM
Protection class
EA
Quality mark
Belgaqua, Kiwa, Belgequa
Type
TBE
Working pressure
10 bar
Description
The Watts TBE-EA backflow preventer has a control valve and an integrated inlet valve. This backflow preventer, also called a check valve, is used to prevent contaminated water from flowing back into the pipe. The spring ensures that the valve is closed as soon as water flows back.
Properties
This check valve has locking rings to secure the device in the required position. The gasket is made of PTFE.
This backflow preventer is easy to install and check, and has a short installation length.
Liquid class
TBE-EA means backflow protection with a controllable check valve. This check-valve can be used up to liquid class 2; liquid that does not pose a risk to human health and is suitable for consumption.
