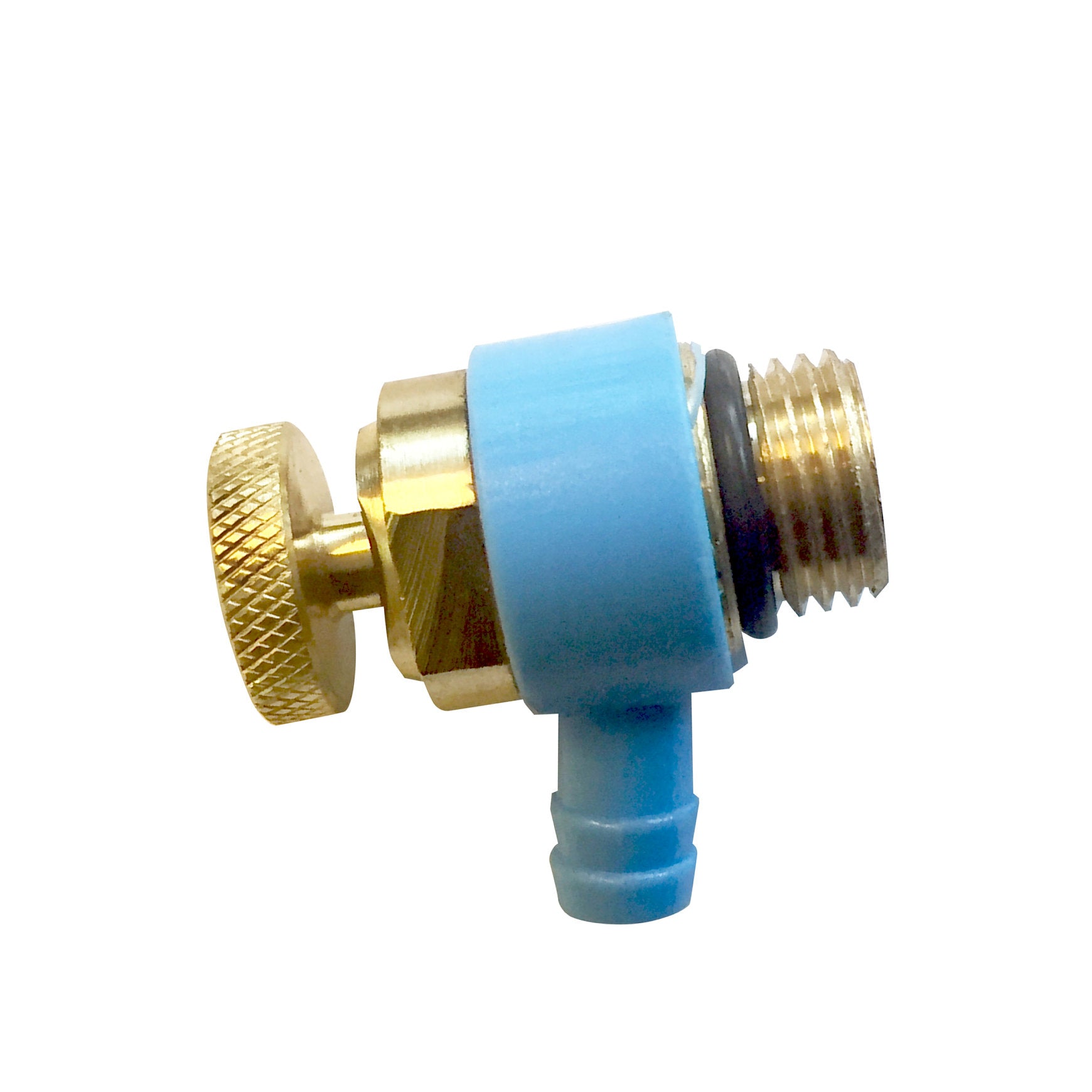

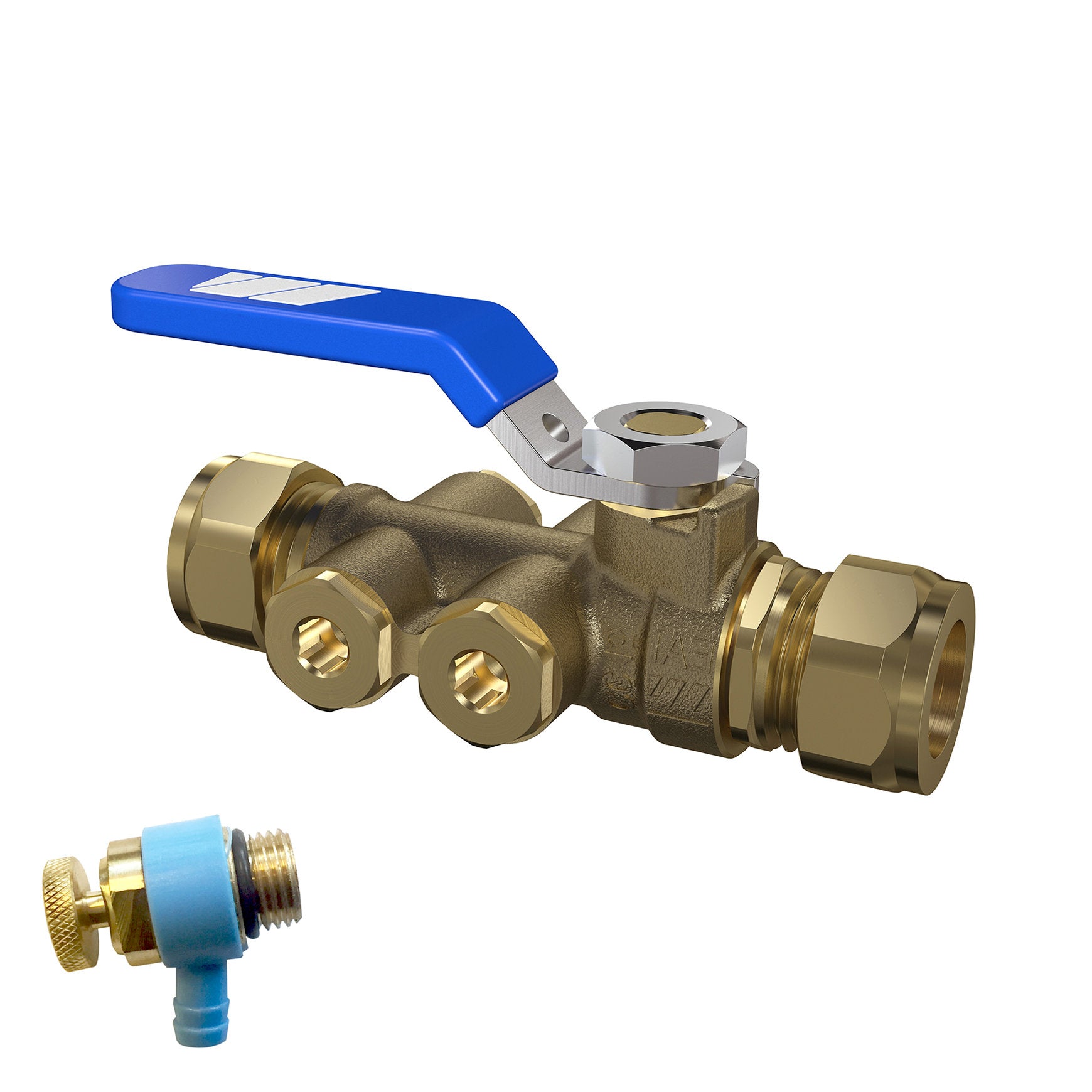

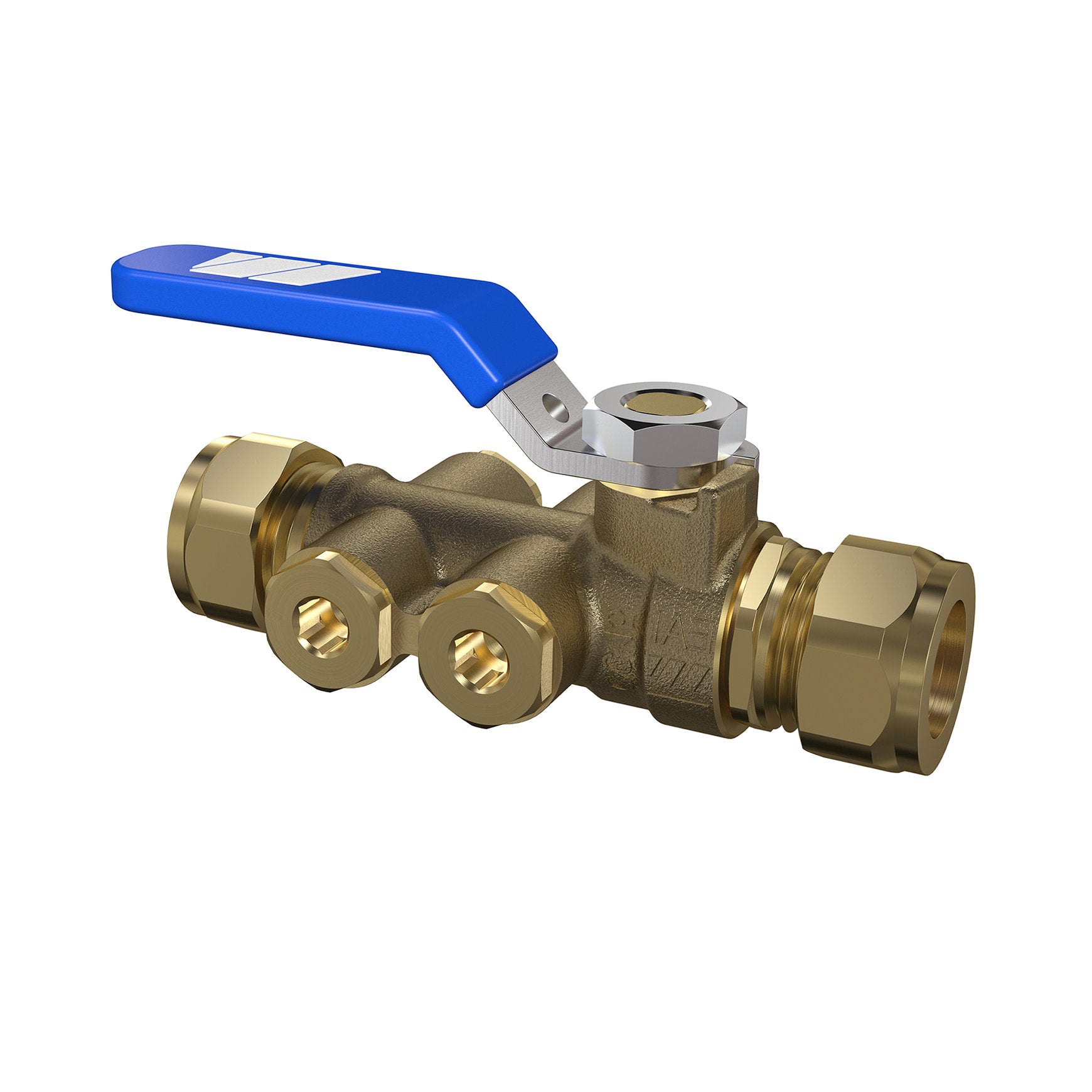

Watts check valve, brass, EA protection, drain valve, incl. ball valve and lever, compression, 22 mm

Watts check valve, brass, EA protection, drain valve, incl. ball valve and lever, compression, 22 mm

SKU:846829

$50.94
$50.94
Sale Sold out
In stock
View full details

Specifications

Ball material
brass
Check valve material
POM
Connection size
22 mm
Connection type
compression
Control cams
¼"
Eancode
3660770746613
Housing material
brass
Length
99 mm
Lever
steel
Maximum working temperature
90 °C
Nominal diameter
20 mm
O-ring
EPDM
Operating temperature
65 °C
Oring
EPDM
Pid owner seller id jarola master repository
Jarola
Pid value seller id jarola master repository
846829
Protection class
EA
Quality mark
Kiwa, Belgequa
Type
TBE
Working pressure
10 bar

Description

The Watts TBE-EA backflow prevention device is equipped with a control valve and integrated shut-off valve on the inlet side. This backflow prevention device, also known as a check valve, is used to prevent contaminated water from flowing back into the pipeline. The spring ensures that the valve closes when water flows back.

Features
This check valve is equipped with locking eyes to seal the device in the desired position. The gasket is made of PTFE.
This backflow prevention device is easy to install and inspect and has a short installation length.

Fluid Class
TBE-EA stands for backflow prevention with a checkable check valve. This check valve is suitable for fluid class 2; liquid substance that does not pose a risk to human health and is suitable for consumption.
