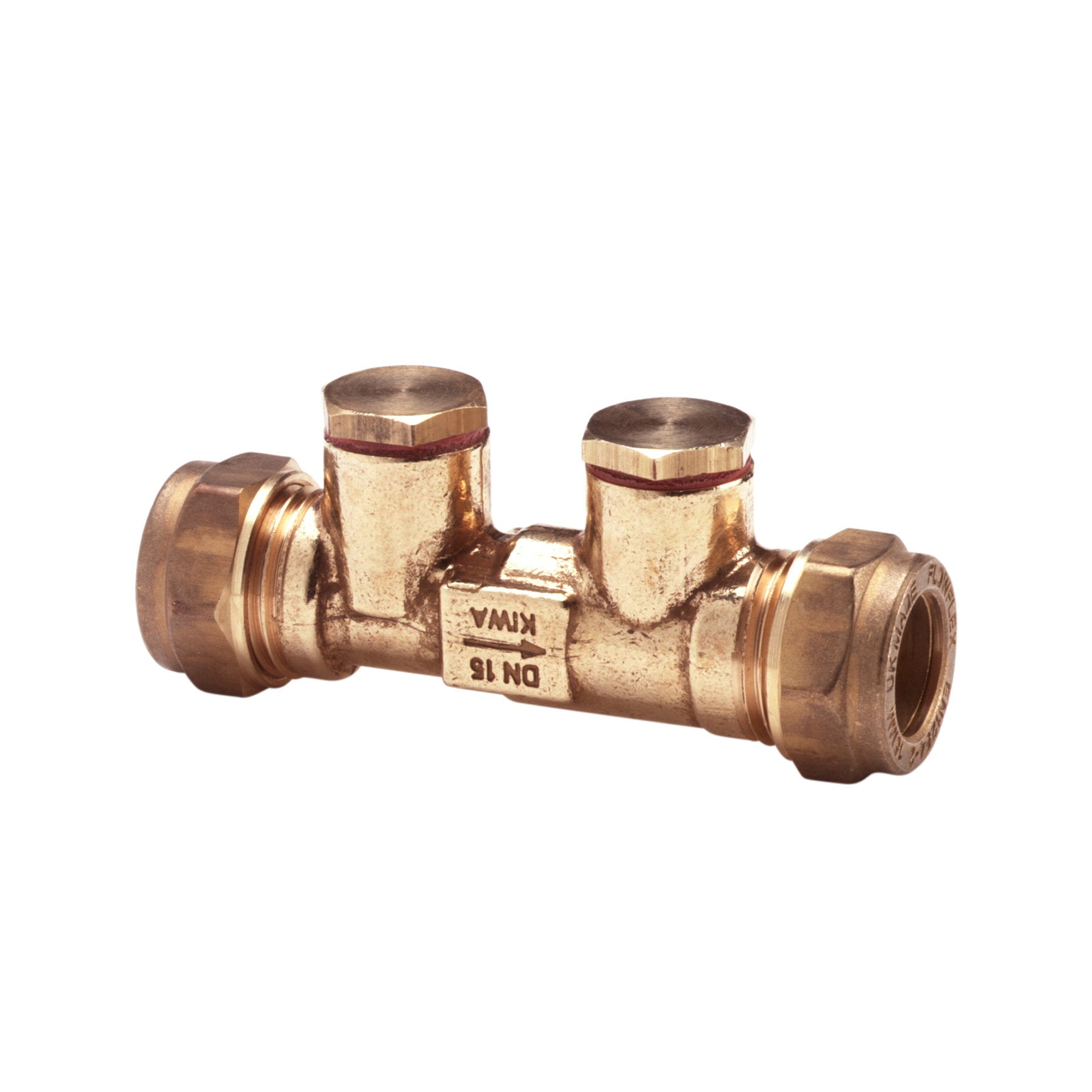

Watts check valve, brass, EA protection, type KF, + drain and control cams, 2x compression, 15 mm
Watts check valve, brass, EA protection, type KF, + drain and control cams, 2x compression, 15 mm
SKU:846772
Regular price
$46.44
Regular price
Sale price
$46.44
Unit price
per
Delivery on request
Specifications
Assortments
wca20100555
Check valve material
plastic
Complementary products v2
ProductListDrop
Connection size
15 mm
Connection type
compression
Control cams
¼"
Eancode
8714847001824
Housing material
brass
Length
90 mm
Maximum pressure
16 bar
Maximum working temperature
90 °C
Operating temperature
65 °C
Oring
rubber
Protection class
EA
Quality mark
Belgaqua, Kiwa, Belgaqua
Type
KF
Working pressure
10 bar
Description
This Watts EA check-valve has drain and control cams so that the function and leak-tightness can be checked without disassembling the check valve. The check valve is used to prevent contaminated water from flowing back into the line. The stainless steel spring ensures that the valve is closed as soon as water flows back.
Properties
The EA protection can be mounted in any position and can be used in indoor installations and other applications.
Liquid class
TBE-EA means backflow protection with a controllable check valve. This check-valve can be used up to liquid class 2; liquid that does not pose a risk to human health and is suitable for consumption.
